QMI StoreSafe® Security Shutters

Description

QMI StoreSafe®

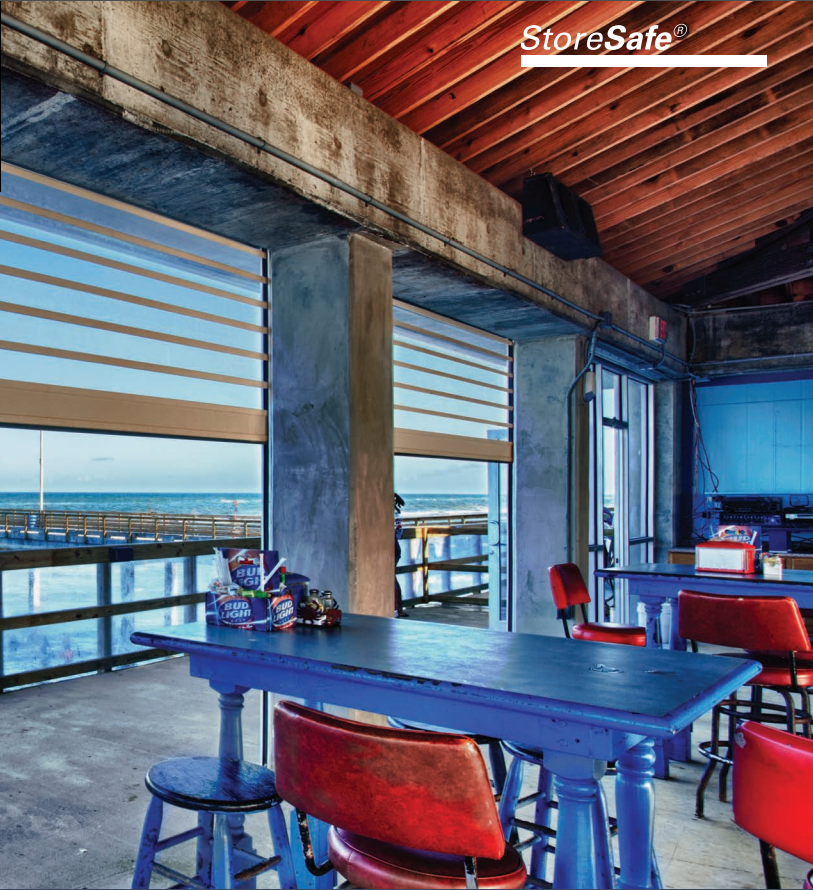

Transparoll and LX-6 security shutters from QMI provide robust and reliable protection for properties while maintaining high visibility. Transparoll shutters are crafted from 6mm thick, UV-resistant polycarbonate. These shutters are scratch-resistant, extend up to 18ft in one piece, and are nearly impossible to break due to their solid guide construction. LX6 shutters, on the other hand, feature anodized “silver” aluminum ribs and polycarbonate inserts up to 36 inches wide. Both options are ideal for both interior and exterior applications.

Transparoll shutters are particularly designed for high visibility and security, with no handholds available for intruders to grip. They’re ideal for applications where viewing the interior is key, such as retail storefronts. LX6 shutters offer medium security but come with greater customization options, including seven standard colors for box housing, side rails, and bottom slats. Both options include emergency release devices and battery backup operations, ensuring safety in all situations.

QMI doesn’t stop at shutters; their product range also includes various other security solutions. Among these are stainless steel screens, designed to offer both protection and visibility. These screens suit a variety of settings, from schools and churches to municipal buildings. These high-tensile 304 grade stainless steel screens are designed to repel most rocks, bricks, and other flying objects, offering an extra layer of security.

Whether it’s for commercial or residential applications, QMI’s products offer comprehensive security without sacrificing design or visibility. Their diverse range means that you can find the perfect solution for your property’s needs, ensuring peace of mind while maintaining aesthetic appeal.

QMI – Security Shutters

Additional information

Design Options

Panel Styles

Colors

Construction

Qompact Shutters: The Gold Standard in Shutter Technology

Size and Design

Smaller Shutter Box

The Qompact shutter system features an ultra-compact design, with a shutter box that is 40-50% smaller than traditional systems. For a 122” (3.1 m) tall shutter, for instance, only a 6.5” (165 mm) box is required, maximizing space efficiency.

Comparison of Box Sizes by Shutter Height

– 69” (1700 mm) : Qompact 5.5” (140 mm), Others 8” (200 mm)
– 84” (2100 mm) : Qompact 6” (150 mm), Others 10” (250 mm)
– 122” (3000 mm) : Qompact 6.5” (165 mm), Others 12” (300 mm)
– 149” (3800 mm) : Qompact 7” (180 mm), Others 12” (300 mm)
– 184” (4800 mm) : Qompact 8” (205 mm), Others 14” (350 mm)

Elegant Slat Design

The Qompact system comes with 10 different slat sizes that have been ingeniously engineered to nest tightly together, allowing for an incredibly compact roll and a smaller box housing.

Strength and Durability

Unparalleled Hinge Strength

Qompact’s slat hinges are robust enough to support curtains up to 6 meters wide (20 feet) and 5 meters high (15 feet). They are 27-times stronger than foam-filled variants, significantly enhancing the shutter’s strength.

Impact Resistance

In rigorous impact testing, Qompact shutters have shown remarkable resilience, withstanding 82 punches, 5 kicks, and 80 hits with a sledgehammer. They consistently outperform foam-filled competitors.

Pull-Apart Strength

The pull-apart strength of Qompact is a staggering 8050 kg/m, making it immensely stronger than the 296 kg/m of 40mm perforated slip hinges.

Insulation and Efficiency

Qompact shutters built into wall applications can feature 30-40% more shutter box foam insulation than traditional systems, enhancing energy efficiency.

Versatility

Residential Applications

For homeowners, Qompact offers quiet operation, elegant design, and robust security. These shutters also provide privacy, sun shading, and even hurricane protection.

Commercial Applications

In the commercial setting, Qompact shutters are unmatched, capable of being built both wider and taller than foam-filled counterparts. Widely used in the United States, these shutters serve both loss prevention and design needs and can even be perforated for nighttime merchandising.

Safety Standards

Meeting the strict U.S. Florida (FBC) hurricane standards, Qompact shutters can withstand winds of up to 330 km/h (200 mph) for spans as wide as 6000mm (19.5 ft).
