QMI HomeSafe® Security Shutters

Description

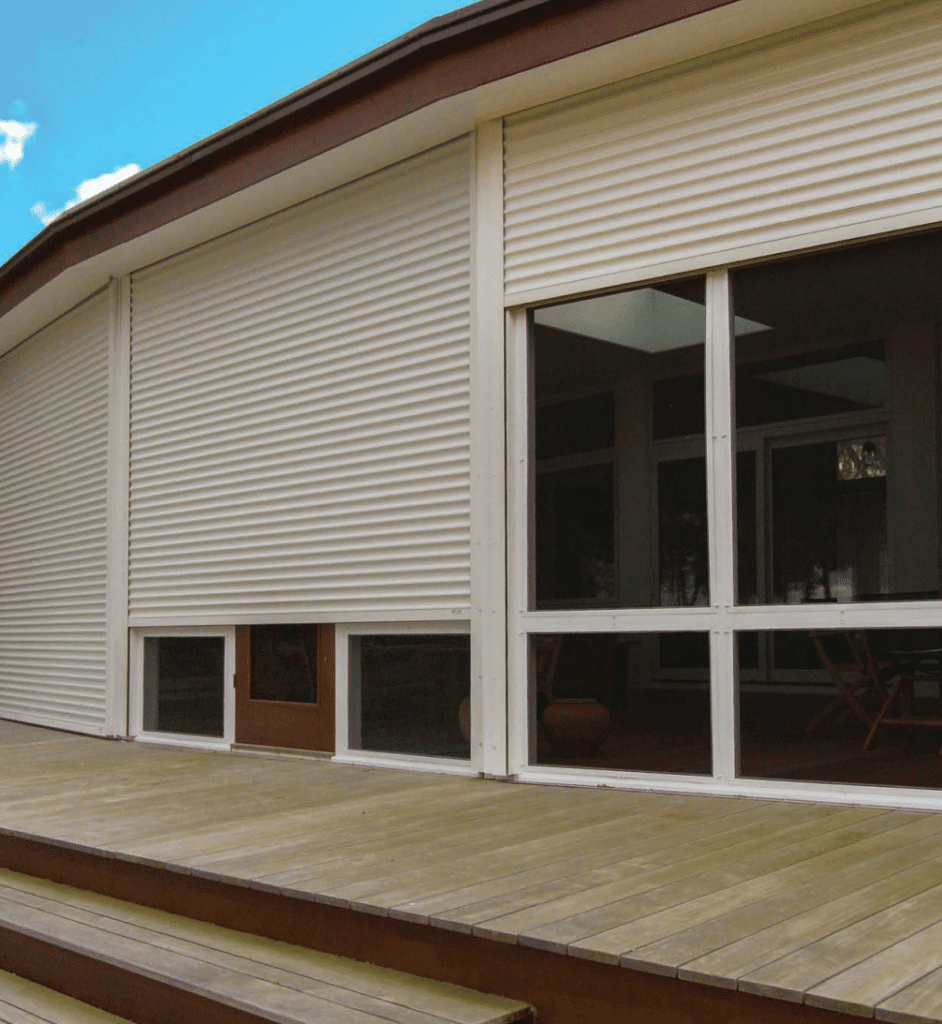

QMI HomeSafe® Security Shutters offers a range of security solutions designed for both protection and aesthetics. Their rolling shutters provide not just security but also protection against severe weather and sun damage. These shutters are discreetly designed to be invisible from the inside when installed externally on a home. HomeSafe rolling shutters come in several attractive options and even have battery-operated systems available for added convenience.

The HomeSafe security screens are another layer of protection ideal for windows and patios. These screens, while only slightly darker than a regular bug screen, provide superior security, capable of deterring burglars and deflecting flying debris. They are hurricane-approved and help reduce outside noise, sun damage, and even prevent water damage. Various control options for these shutters and screens are available, from manual straps to solar-powered operations, making them convenient to use.

Control systems for these shutters utilize a torsion spring inside the tube opposite the control mechanism, which offers several advantages including easy manual or gear operation. Spring-assisted shutters can cover up to 130 square feet without the need for motors or gears. Motorized options are also available, with a safety feature that prevents the shutter curtain from free-falling in case of motor failure. Remote controls for these motorized shutters work through walls, similar to garage door openers, providing convenient operation.

QMI also offers a range of customization options, from box housing styles to colors, making it easier for homeowners to choose a security solution that best suits their aesthetic and functional needs. Whether it’s manual, solar-powered, or motorized, HomeSafe provides versatile and effective security solutions for your home.

QMI – Security Shutters

Additional information

Design Options

Panel Styles

Colors

Construction

Qompact Shutters: The Gold Standard in Shutter Technology

Size and Design

Smaller Shutter Box

The Qompact shutter system features an ultra-compact design, with a shutter box that is 40-50% smaller than traditional systems. For a 122” (3.1 m) tall shutter, for instance, only a 6.5” (165 mm) box is required, maximizing space efficiency.

Comparison of Box Sizes by Shutter Height

– 69” (1700 mm) : Qompact 5.5” (140 mm), Others 8” (200 mm)
– 84” (2100 mm) : Qompact 6” (150 mm), Others 10” (250 mm)
– 122” (3000 mm) : Qompact 6.5” (165 mm), Others 12” (300 mm)
– 149” (3800 mm) : Qompact 7” (180 mm), Others 12” (300 mm)
– 184” (4800 mm) : Qompact 8” (205 mm), Others 14” (350 mm)

Elegant Slat Design

The Qompact system comes with 10 different slat sizes that have been ingeniously engineered to nest tightly together, allowing for an incredibly compact roll and a smaller box housing.

Strength and Durability

Unparalleled Hinge Strength

Qompact’s slat hinges are robust enough to support curtains up to 6 meters wide (20 feet) and 5 meters high (15 feet). They are 27-times stronger than foam-filled variants, significantly enhancing the shutter’s strength.

Impact Resistance

In rigorous impact testing, Qompact shutters have shown remarkable resilience, withstanding 82 punches, 5 kicks, and 80 hits with a sledgehammer. They consistently outperform foam-filled competitors.

Pull-Apart Strength

The pull-apart strength of Qompact is a staggering 8050 kg/m, making it immensely stronger than the 296 kg/m of 40mm perforated slip hinges.

Insulation and Efficiency

Qompact shutters built into wall applications can feature 30-40% more shutter box foam insulation than traditional systems, enhancing energy efficiency.

Versatility

Residential Applications

For homeowners, Qompact offers quiet operation, elegant design, and robust security. These shutters also provide privacy, sun shading, and even hurricane protection.

Commercial Applications

In the commercial setting, Qompact shutters are unmatched, capable of being built both wider and taller than foam-filled counterparts. Widely used in the United States, these shutters serve both loss prevention and design needs and can even be perforated for nighttime merchandising.

Safety Standards

Meeting the strict U.S. Florida (FBC) hurricane standards, Qompact shutters can withstand winds of up to 330 km/h (200 mph) for spans as wide as 6000mm (19.5 ft).
