COACHMAN®, 4 Layer, Polystyrene or Polyurethane Insulated

Description

OVERVIEW

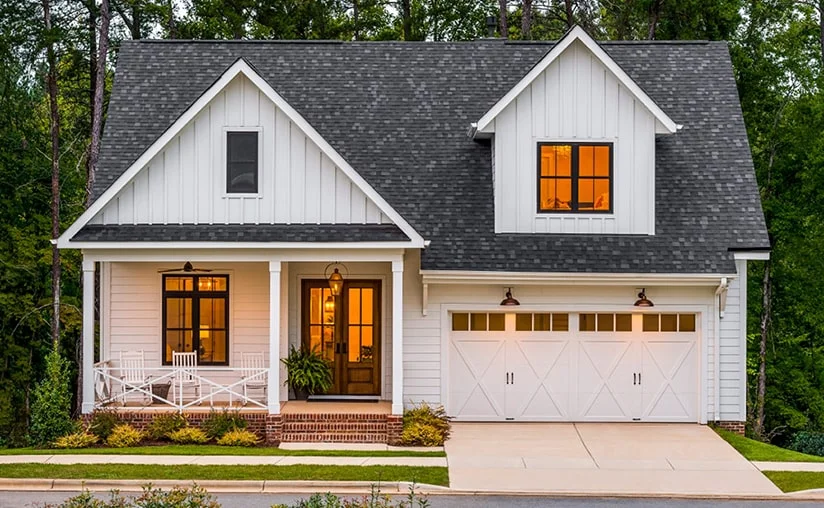

Coachman® garage doors combine the timeless charm of swing-out carriage house doors with the convenience of modern overhead garage doors. These doors boast a perfect fusion of beauty and functionality, evident in the attractive yet durable steel and composite construction.

CONSTRUCTION OVERVIEW

Steel carriage house doors with 4-layer construction offer excellent durability. You can choose from insulation options like 2″ Intellicore® polyurethane, 2″ polystyrene, or 1-3/8″ polystyrene, with R-values ranging from 6.5 to 18.4. The steel skins of these doors are protected by a tough, layered coating system, including a hot-dipped galvanized layer and baked-on primer and top coat. WINDCODE® door reinforcement product is available for high wind load applications.

DESIGN OVERVIEW

Enjoy the freedom of selecting from four factory finish paint and overlay colors. You can mix overlay and base colors to achieve your desired look. Multiple glass options, including clear, seeded, rain, obscure, frosted, and insulated, are available. The attractive beveled edge clip-in window grilles are removable for easy cleaning. Complete with spade lift handles and step plates, these doors offer additional decorative hardware options to further enhance their appearance.

Environmental Assurance:

These doors proudly comply with environmental laws and regulations, showing a commitment to responsible manufacturing practices. Notably, they are free from Hydrofluorocarbons (HFCs), contributing to their eco-friendly design. They meet the requirements set by various legislations, including:

• California SB 1013
• Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
• Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
• New Jersey A-5583/S-3919 – Greenhouse Gas Bill

With a focus on sustainability and environmental consciousness, you can trust the excellence of these Canyon Ridge® doors in elevating the aesthetics and functionality of your home.

Clopay website – COACHMAN

Additional information

Design Options

Series 1

Design 11  Design 12  Design 13

Series 2

Design 21  Design 22  Design 23

Series 3

Design 31 Design 32 Design 33 Design 34  Design 35  Design 36

Series 4

Design 41 Design 42 Design 43

Construction

Composite overlay, Steel, Insulation with thermal break (2″ Intellicore® polyurethane, 2″ polystyrene, or 1-3/8″ polystyrene insulation, R-values from 6.5 to 18.4), Steel.

Features:
– Replaceable vinyl bottom weather seal in rust-free aluminum retainer for enhanced weather protection.
– Grilles are removable for effortless cleaning.
– Safe-T-Bracket® ensures safety by preventing serious injury when removing the bottom bracket with the garage door closed and under tension.
– Door sample shown in Standard White.
– Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2).

Brochures

Product Brochure

Brochure of the Coachman door series.

Coachman Brochure

Installation instructions

Technical Installation & Maintenance Guide.

Installation and Maintenance instructions

Hinge installation guide for Coachman Series

Hinge Installation

Care and maintenance guide

A guide to the care and maintenance of your door.
Care and Maintenance

Warranty

Information on the warranty.

One Year Warranty
