CANYON RIDGE® CARRIAGE HOUSE (4-LAYER), Polyurethane Insulated

Description

OVERVIEW

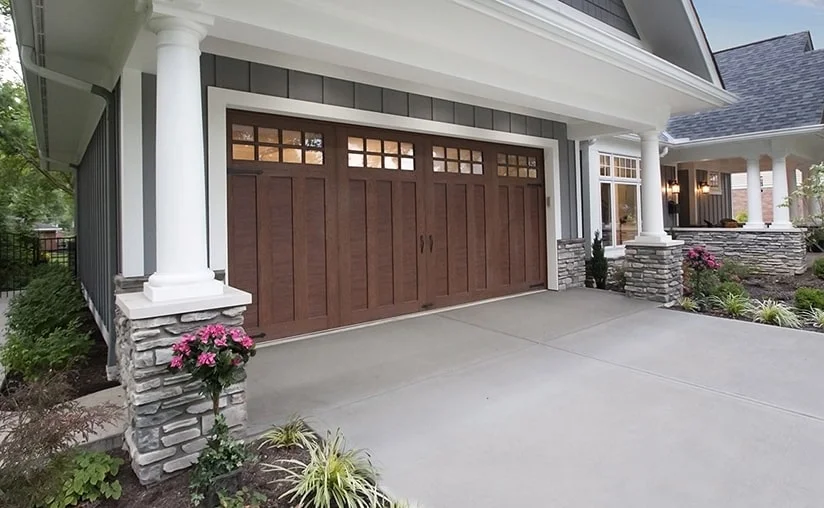

Clopay Canyon Ridge® Carriage House (4-Layer) garage doors seamlessly blend the timeless charm of carriage house designs with modern technology, functionality, and energy efficiency. Constructed with steel for strength and durability, and adorned with molded composite overlays for beauty and realism. These doors feature:

• 4-Layer Construction: Steel + Insulation + Steel + Composite Overlay.
• Explore the Faux Wood-Look Composite Overlay, Offering Clear Cypress for Ultra-Grain® Color Options and Mahogany for Solid Colors.
• Choose from a Variety of Colors, Including Ultra-Grain Walnut, Ultra-Grain Medium, Ultra-Grain Slate, Black, White, and Primed.
• Experience Superior Insulation with 2″ Intellicore® Polyurethane Insulation Featuring a Thermal Break, Offering an Impressive R-Value of 18.4.
• For High Wind Load Applications, WINDCODE® Door Reinforcement Product is Available.

ENVIRONMENTAL ASSURANCE

Rest assured, Clopay doors are fully compliant with environmental laws and regulations. Our doors are free from HFCs, aligning with the following standards:

• California SB 1013
• Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
• Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
• New Jersey A-5583/S-3919 – Greenhouse Gas Bill

Clopay website – CANYON RIDGE® CARRIAGE HOUSE (4-LAYER)

Additional information

Design Options

Series 1

Design 11  Design 12  Design 13

Series 2

Design 21  Design 22  Design 23

Series 3

Design 31 Design 32 Design 33 Design 34  Design 35  Design 36  Design 37  Design 38

Construction

Clopay® Canyon Ridge® Carriage House (4-Layer) garage doors boast a robust base door and overlays. The faux wood-look composite overlays are designed for low maintenance, remarkable durability, and resistance to rot, warping, or cracking.

Door Sample Shown in Medium Finish. The Replaceable Vinyl Bottom Weather Seal in a Rust-Free Aluminum Retainer Offers Optimal Protection Against the Elements. Enjoy Smooth, Long-Lasting, and Quiet Operation with High-Performance Nylon Ball Bearing Rollers. Heavy-Duty 14 Gauge Steel Hinges and Brackets Ensure Smooth and Worry-Free Operation.

Removable Window Grilles Facilitate Easy Cleaning. The Safe-T-Bracket® Prevents Serious Injury When Removing the Bottom Bracket with the Garage Door Closed and Under Tension.

The Rust-Prevention System Safeguards Steel Skins with a Tough, Layered Coating, Including Hot-Dipped Galvanized Layer, Protective Metal Oxide Pretreatment, Baked-On Primer, and Top Coat.

Product Complies with 2015 IECC Air Infiltration Requirement of 0.40 cfm/ft² or Less (IECC, Section C402.5.2).

Brochures

Product Brochure

Brochure of the Canyon Ridge door series.

Canyon Ridge Brochure

Ultra Grain Finish, Experience the Timeless Beauty of Stained Wood, Without the Upkeep.

Ultra Grain Finish

Installation instructions

Technical Installation & Maintenance Guide.

Installation and Maintenance instructions

Care and maintenance guide

A guide to the care and maintenance of your door.
Care and Maintenance

Warranty

Information on the warranty.

One Year Warranty
