Open the door to peace of mind.™

HERITAGE CLASSIC™ E-SERIES, 3 Layer, Polystyrene Insulated

(1 customer review)

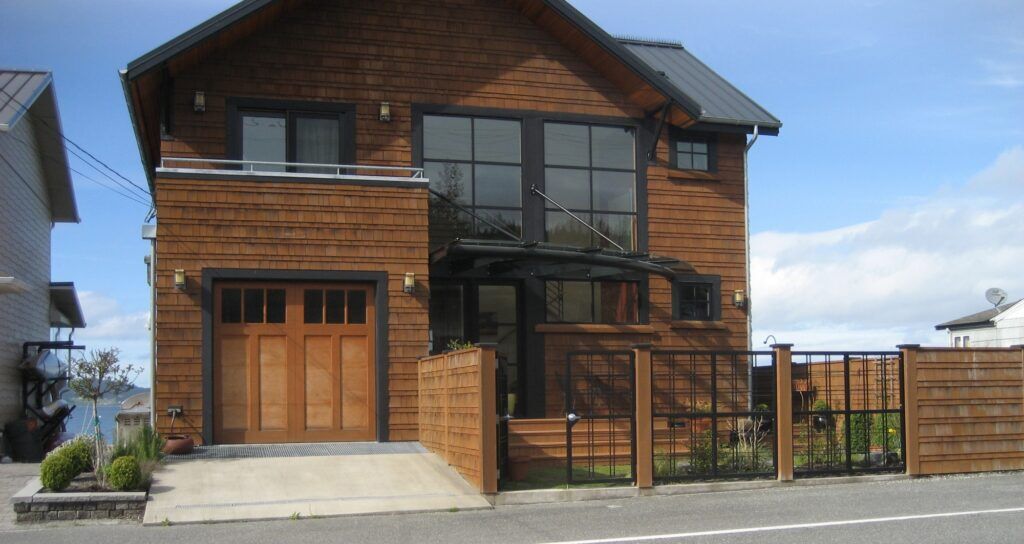

Heritage Classic™ E-Series is a fine handcrafted wood carriage house style garage door with flush insulated wood sections ready to receive wood overlay designs. Our skilled artisans can replicate various designs using select woods like Cedar, Tight Knot Cedar, Redwood, Knotty Alder, VG Fir, Meranti, and others. Create a unique and elegant entrance for your garage with this beautiful and customizable door.


The Heritage Classic™ E-Series boasts a frame thickness of 1-1/8″, with face material and overlay thicknesses of 1/4″ and 3/4″, respectively, resulting in an overall door thickness of 2-1/4″. Featuring sturdy end stiles measuring 5-1/2″ and center stiles at 10″, this door is built with precision and elegance. The bottom rail is 7-1/2″ wide, while the top rail is 5-1/2″, with a combined meeting rail width of 5″.

The doors are designed with standard arches, featuring a 15′-0″ radius for doors up to 10′ wide and either a single 58′-0″ radius or two 15′-0″ radius arches (double arches) for wider doors. With a calculated insulation rating of R Value=6.18, these doors offer excellent insulation, specifically optimized for colder climates, ensuring long-term energy efficiency. The finish is expertly done, with the face sanded and ready for your chosen finishing touch, adding a touch of sophistication to your garage entrance.


Northwest Door website – HERITAGE CLASSIC™ E-SERIES

Additional information





Paint Method

No Special Paint Options

Wind Rating

No Information on Wind Rating



Environmental Assurance

No Information on Environmental Assurance


Yes, request a quote for more info.

Door Types

Sectional Door, Wood

Design Options

Glass Options

Door Design Options





Northwest Door warranty information



Wood Door Finishing Requirements


1 review for HERITAGE CLASSIC™ E-SERIES, 3 Layer, Polystyrene Insulated

  1. Nora Collins

    This door looks great on my home.
